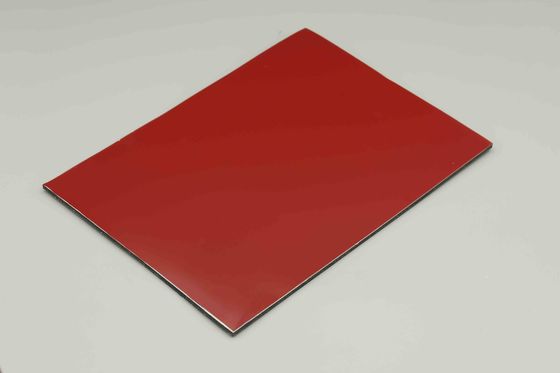

Red Coffee Indoor PVDF Aluminum Composite Panel Outdoor Facade Acp Sheet

MOQ:	300 meter square
Price:	negotiable
Standard Packaging:	wooden package
Delivery Period:	15-20days
Payment Method:	L/C,D/A,D/P
Supply Capacity:	30000 Meter square /day

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Alushang

Certification

sgs ISO

Model Number

1220*2440MM 4MM

Color:

Red Coffee

Machine Length:

CNC Laser Cutting Machine

300 Meter Square

Material:

Aluminum Alloy

Environment:

Eco Environment

Function:

Seismic Resistance And Wind Resistance.

Surface Treatment:

PVDF Coated

Width:

1.22*2.44m

Protection Film:

Alushang

Highlight:

Red Coffee PVDF Aluminum Composite Panel

indoor PVDF Aluminum Composite Panel

outdoor facade acp sheet

Product Description

Advanced Performance Attributes

For international architectural projects, building envelopes demand rigid physical compliance. Our PVDF ACP sheets provide verified technical advantages:

Superior UV & Weather Resistance: The advanced PVDF fluorocarbon coating acts as a robust shield against intense solar radiation, temperature fluctuations, and industrial pollution, guaranteeing gloss and color retention for over 15 years.
High Dimensional Flatness & Rigidity: Utilizing precision continuous thermal lamination, the panel maintains exceptional flatness and eliminates warping, crucial for delivering a flawless, smooth appearance on expansive curtain walls.
Optimal Weight-to-Strength Ratio: Weighing only half as much as solid aluminum plates with equivalent rigidity, these lightweight ACM metal panels significantly reduce structural load and streamline on-site fabrication and installation.

Specifications And Sizes

Parameter	Specification
Aluminum Skin Thickness	0.06mm-0.50mm
Total Panel Thickness	2mm-6mm
Width	1000mm, 1220mm (regular), 1250mm, 1300mm, 1500mm, 1550mm, 1575mm (maximum)
Length	Up to 5800mm
Standard Size	1220mm (width) × 2440mm (length)
Production Capability	100,000sqm / month
Inner Core Options	Normal non-toxic polyethylene, one side unbroken polyethylene, two side unbroken polyethylene, virgin LDPE, B1 non-combustible mineral filled core, A2 non-combustible mineral filled core

Non-standard sizes and special colors available upon request.

Benefits of ACP

Manufacturing Facility

Our factory, relocated to WENXIAN in 2021, specializes in aluminum composite panel and aluminum veneer production. With over 100 employees across 30,000 square meters, we utilize advanced production equipment including high-end instruments imported from Japan, continuously improving our technology.

Applications

Constructional exterior curtain walls
Decorative renovation for store-added old buildings
Indoor decoration for walls, ceilings, bathrooms, kitchens and balconies
Commercial spaces: galleries, exhibitions, salons, stores, offices, banks, hotels, restaurants and apartments
Advertising boards, display platforms and signboards
Industrial raw materials
Vehicle and boat manufacturing materials

Packing and Shipping

We prioritize secure packaging and reliable shipping to ensure our PVDF Aluminum Composite Panels arrive in perfect condition. Each panel is carefully wrapped in protective film and packed in sturdy cardboard boxes or crates with additional padding (foam inserts or bubble wrap) for shock absorption.

We partner with trusted shipping providers, selecting the optimal method (trucking, rail, sea or air freight) based on destination and urgency. All shipments are tracked, with our customer service team available for updates and inquiries.
